General Equipments

Ophtahlmic Operation Table

Ophthalmic Operation Table

Ergonomic Operation Table with Built-in Oxygen Inlet Tube, Side Tray, IV Pole

Specification:
Height Range Min./Max. 640mm. / 870mm.
Lifting Speed 8mm / s
Total Length 1880mm.
Total Width 690mm.
Base Size 825mm. / 520mm.
Input Tension 230 V 50 / 60 Hz
110 V 50 / 60 Hz
Weight Capacity 135 Kgs.
Gross Weight 115 Kgs.

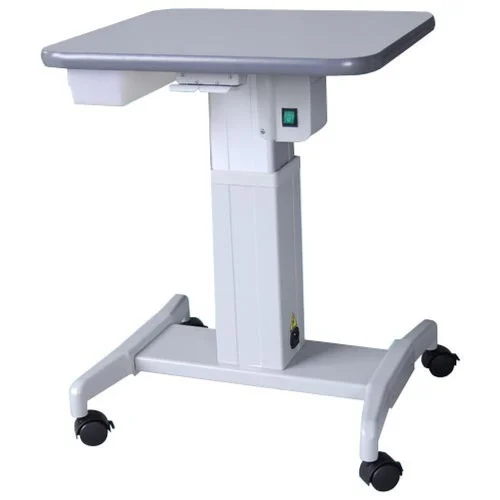

Motorised Instrument Table

  • Well designed, economical motorized instrument table top for any kind of ophthalmic Instruments.
  • The foot switch can be conveniently positioned for ease of elevation.
  • CE Certified German Motor for smooth, Quiet and reliable up/down movement.
  • Strong foundation base with four castors for smooth, safe and stable movement.
Maximum Table Height 870mm
Maxium Table Height 670mm
Vertical Adjustment Range 200mm
Maximum Load 55 Kgs
Table Top Size 570 x 400 x 25 mm
Overall Dimension 530 x 580 x 870 mm
(Body only) Weight (Body only) (L) (W) (H)
33.000 Kgs
Power Supply AC 240 V 50 / 60Hz
Power Consumption 250 Va
Ophthalmic Operation Table

Ophthalmic Refraction Unit

Ophthalmic Refraction Unit
Features :
  • Fully Automatic Operation
  • CE Certified Noisless German Motors For up, down & Reclining
  • Easy to Operate.
  • Excellent Quality & Well Rounded Design
  • Long Life
  • Adjustable Foot Rest
  • Optimal Utilization of Space
  • Maximum Patient Comfort
  • Available in Right Handed & Left Handed Design

Chair

Elevation Strokes 200mm
Seat Height 480mm to 580mm
Inclination of Back Rest 90 to 180 Degree
Power Source 220 V AC 50 Hz
Power Consumption 660 VA
Load Lifting Capacity 200 Kg.

Unit

Power Supply 0, 1.5, 2.5, 3.4, 6.7, 5.9, & 12V
Loaded Weight 30 Kg on right & Left Side
Height From the Floor 900mm
Table Top Size 810mm x 405mm
Trial Lens Set Tray Size 525mm x 345mm x 50mm
Light Pole Length 1100mm x 42mm
Prescription Table 400mm x 400mm
Opthalmoscope Voltage Range 0, 4, 5, 6, 7, 9 & 12V From 2AMP Transformer
Fuse Slow Blow Type
Power Source 220V AC
Max.Area Required 2400 x 1430
Total Net Weight of Chair & Unit 240 Kgs

Standard Colors :

Note : Specifications and designs are subject to change without prior information as per emerging market demands:
