Ophthalmic Device & Disposables

Ophthalmic Lenses

Micro Surgical Blade

Cataract (Phaco) Surgery Kit

Visual Acuity Testing Chart

PMMA Intraocular Lenses

Phaco IOLs

Posterior Chamber IOLs

Anterior Chamber IOLs

MODEL Material Optic Size Overall Size Positioning Holes Haptic Vault Haptic Style Power Range A Constant A C Depth
DI60125H PMMA 6.00mm 12.50mm Two Step
Vault		 Capsular
C		 1.0 to 30 with
0.5 increment		 118.20 5.00 mm
DI55125C PMMA 5.50mm 12.50mm None Step
Vault		 Modified
C		 1.0 to 30 with
0.5 increment		 118.20 5.00 mm
DI525125C PMMA 5.25mm 12.50mm None Step
Vault		 Modified
C		 1.0 to 30 with
0.5 increment		 118.20 5.00 mm
DI60130C PMMA 6.00mm 13.00mm None Step
Vault		 Modified
C		 1.0 to 30 with
0.5 increment		 118.00 4.80 mm
DI65130H PMMA 6.50mm 13.00mm Two Step
Vault		 Modified
C		 10 to 30 with
0.5 increment		 118.00 4.80 mm
DI50120C PMMA 5.00mm 12.00mm None Step
Vault		 Modified
C		 1.0 to 30 with
0.5 increment		 118.20 5.00 mm
DI525120C PMMA 5.25mm 12.00mm None Step
Vault		 Modified
C		 1.0 to 30 with
0.5 increment		 118.20 5.00 mm
DI60125S PMMA 6.00mm 12.50mm None Mod
S		 Modified
S		 11 to 25 with
0.5 increment		 115.30 3.00 mm

Lenses are available in Various Style and Power with 0.5 Increments.

Hydrophilic Acrylic Foldable IOL

Lens Design

MODEL Optic Design Optic Size Overall All Length Haptic Angle A Constant A C Depth
DF60R Equiconvex 6.00mm 12.50mm 0 ° 118.0 5.00mm
DF60 Equiconvex 6.00mm 12.50mm 0 ° 118.0 5.00mm
DF60M Equiconvex 6.00mm 11.00mm 0 ° 118.0 5.00mm

Hydrophilic Acrylic Aspheric Foldable IOL

Lens Design

MODEL Optic Design Optic Size Overall All Length Haptic Angle A Constant A C Depth
AVF 575SQ-R Equiconvex 5.75mm 12.50mm 0 ° 118.0 5.00mm
AVF 601SQ-C Equiconvex 6.00mm 12.50mm 0 ° 118.0 5.00mm
AVF 601SQ-M Equiconvex 6.00mm 11.00mm 0 ° 118.0 5.00mm

Ophthalmic Micro Surgical Knives - Round Stock

MODEL Size Description
DB1524ST 1.5mm 24 Gauge
DB1820ST 1.8mm 20 Gauge
DB2020ST 2.0mm 20 Gauge
DB2320ST 2.3mm 20 Gauge
DB2520ST 2.5mm 20 Gauge
DB2620ST 2.65mm 20 Gauge
DB2820ST 2.8mm 20 Gauge
DB3019ST 3.0mm 19 Gauge
DB3219ST 3.2mm 19 Gauge
DB3219ST 3.5mm 19 Gauge

Keratome Knives (Sharp Tip) - For Phaco Stab Incision

Straight / Angle 45 Deg. Bevel Up / Down

Lance Tip Knives For Initial Incision

Lance Tip

MODEL Size Description
DB1524LT 15 Deg 24 Gauge
DB3024LT 30 Deg 20 Gauge
DB4524LT 45 Deg 20 Gauge
MODEL Size Description
DB3518BT 3.5mm 18 Gauge
DB3818BT 3.8mm 18 Gauge
DB4018BT 4.0mm 18 Gauge
DB5116BT 5.1mm 16 Gauge
DB5516BT 5.5mm 16 Gauge
DB6015BT 6.0mm 15 Gauge

Keratome Knives (Sharp Tip) - For I.O.L Enlarging

Straight / Angle 45 Deg. Bevel Up / Down

Crescent Knives For Tunnel Incision

Straight / Angle 45 Deg. Bevel Up / Down

MODEL Size Description
DB2020TI 2.0mm 20 Gauge
DB2520TI 2.5mm 20 Gauge

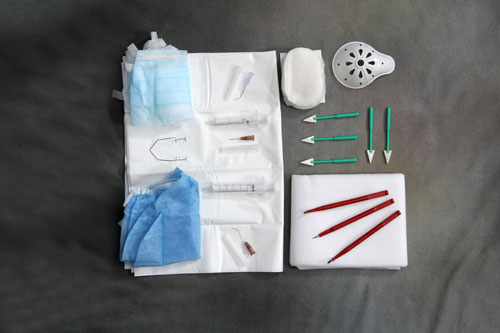

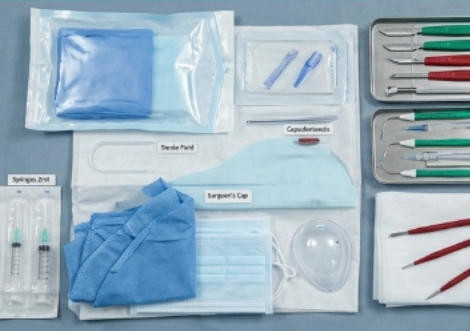

Cataract (Phaco) Surgery Kit - Model : DI8008

The kit is designed to give you the tools, which required during the cataract (phaco) surgery.

It Includes
  • Knives (keratome 2.8 mm, Crescent Bevel Up, Lance Tip 15 degree, Enlarger 5.1 mm
  • Eye Shields Speculums
  • Disposable syringes (2 ml,5 ml)
  • Surgeons Masks
  • Surgeons Cap
  • Phaco Trolley Cover
  • Spears, Drapes and Dressing
  • Fluid and Flap Management tools

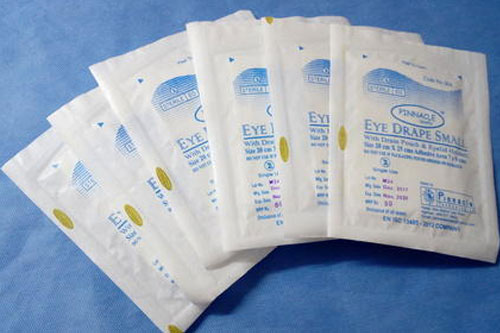

Eye Drapes

Mode of:
(A) Spun
Size
5 x 40
60 x 60
80 x 70 in cms
90 x 90
100 x 100
120 x 150
100 x 75
Available With Drain Bag & Without Drain Bag

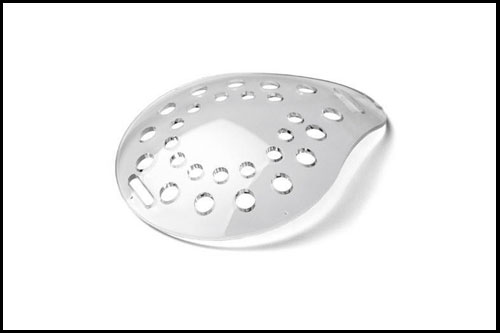

Eye Shield

Eye pad is made of super fine cotton covered with finest bandage & non woven layer Available in small and big sizes

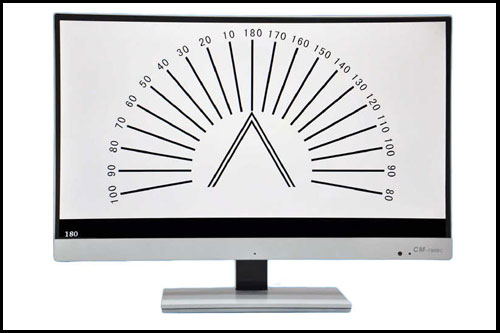

Visual acuity testing chart (Eye-Q Chart)

We are one of the leading manufactures and suppliers of an excellent quality range of vision testing charts. these Charts are manufactured as per the set industry standards using premium quality raw material. Available in wall mount and table stands, these space saving charts have high resolution and are suitable for contrast sensitivity tests. the offered vision charts are tested on various quality parameters and are appreciated for their features like durability,high brightness, fine finish and light weight.

Key Features

  • Space saving
  • Multiple distance in one unit
  • All Regional language
  • Patient education charts
  • No Bulb Replacement

Technical specifications

  • Display Type : 18.5' LED TFT Display
  • Power Consumption:30w
  • Gross weight :4.5 Kg
