Ophthalmic Lenses

Dayal Healthcare

PMMA Intraocular Lenses

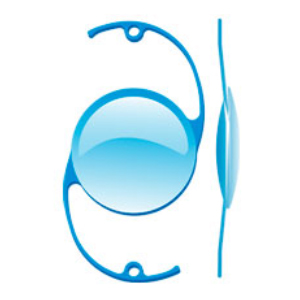

Phaco IOLs

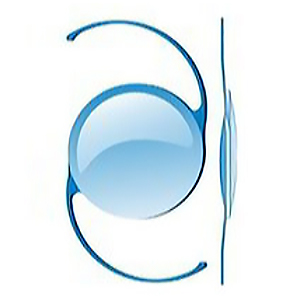

Posterior Chamber IOLs

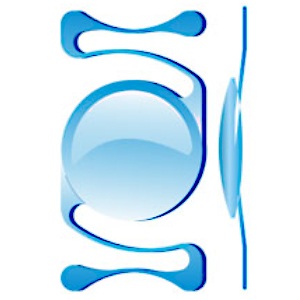

Anterior Chamber IOLs

Lenses are available in Various Style and Power with 0.5 Increments.

Model	Material	Optic Size	Overall Size	Positioning Holes	Haptic Vault	Haptic Style	Power Range	A Constant	A C Depth
DI60125H	PMMA	6.00mm	12.50mm	Two	Step Vault	Capsular C	1.0 to 30 with 0.5 increment	118.20	5.00 mm
DI55125C	PMMA	5.50mm	12.50mm	None	Step Vault	Modified C	1.0 to 30 with 0.5 increment	118.20	5.00 mm
DI525125C	PMMA	5.25mm	12.50mm	None	Step Vault	Modified C	1.0 to 30 with 0.5 increment	118.20	5.00 mm
DI60130C	PMMA	6.00mm	13.00mm	None	Step Vault	Modified C	1.0 to 30 with 0.5 increment	118.0	4.80 mm
DI65130H	PMMA	6.50mm	13.00mm	Two	Step Vault	Modified C	10 to 30 with 0.5 increment	118.00	4.80 mm
DI50120C	PMMA	5.00mm	12.00mm	None	Step Vault	Modified C	1.0 to 30 with 0.5 increment	118.20	5.00 mm
DI525120C	PMMA	5.25mm	12.00mm	None	Step Vault	Modified C	1.0 to 30 with 0.5 increment	118.20	5.00 mm
DI60125S	PMMA	6.00mm	12.50mm	None	Mod S	Modified S	11 to 25 with 0.5 increment	115.30	3.00 mm

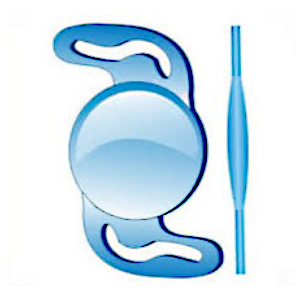

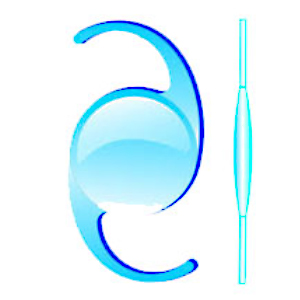

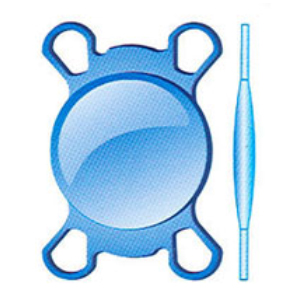

Hydrophilic Acrylic Foldable IOL

Lense Designs

Model	Optic Design	Optic Size	Overall All Length	A Constant	A C Depth
DF60R	Equiconvex	6.00mm	12.50mm	118.0	5.00mm
DF60	Equiconvex	6.00mm	12.50mm	118.0	5.00mm
DF60M	Equiconvex	6.00mm	11.00mm	118.0	5.00mm

Hydrophilic Acrylic Aspheric Foldable IOL

Lense Designs

Model	Optic Design	Optic Size	Overall All Length	A Constant	A C Depth
AVF 575SQ-R	Equiconvex	5.75mm	12.50mm	118.0	5.00mm
AVF 601SQ-C	Equiconvex	6.00mm	12.50mm	118.0	5.00mm
AVF 601SQ-M	Equiconvex	6.00mm	11.00mm	118.0	5.00mm

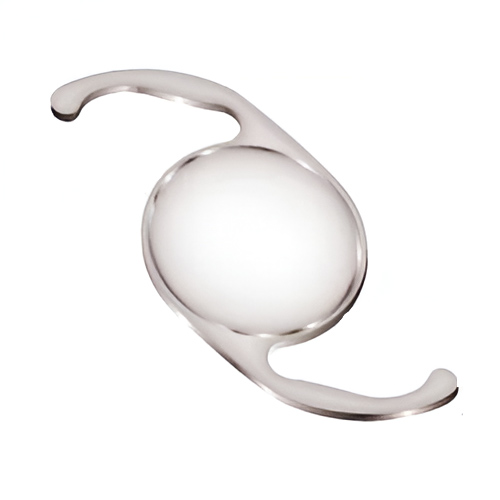

Hydrophobic Acrylic Foldable IOLs

The Global Ophthalmic private limited manufactured Hydrophobic Acrylic Foldable Single piece Intraocular lens (IOL) is an ultraviolet light filtering posterior chamber lens. It is designed to be positioned in the lens capsule where the lens should replace the optical function of the natural crystalline lens in the human eye.

FLEXIOL PHOBIC Aspheric Hydrophobic foldable IOL made from pure acrylic polymer and a proprietary cryo-lathing process with no glistening. Flexiol Phobic Aspheric series intraocular lenses with aberration free Ultra view advanced technology. Our Aspheric IOL’s with negative spherical aberration to compensate for positive aberration of an average cornea.

Our Negative spherical aberration aspheric design results to reduce or eliminate the spherical aberration of the eye and peak visual performance like young adults after cataract surgery with our lens. Our foldable acrylic IOLs are lower refractive index- which minimizes problems with glare, external and internal reflections and other unwanted visual phenomena. Our Aspheric IOL’s to be safely implanted whatever their corneal spherical aberrations.

Product Features

Aberration Neutral Aspheric optics-negative spherical aberration wave front technology.

Excellent quality of vision and greatly increased contrast sensitivity.

Well polished smooth Hydrophobic optics helps delayed PCO and haptic for ease of unfolding.

360^o Square edge design provides uninterrupted contact at the haptic-optic junction to limit LEC’s migration.

5^o Angulations haptic design – continuous posterior surface contact with the capsular bag to prevent PCO.

The advanced IOL design-Stable and Perfect centration and ultimate stability in the capsular bag.

Optics is YAG Laser Compatible.

Intraocular Lenses

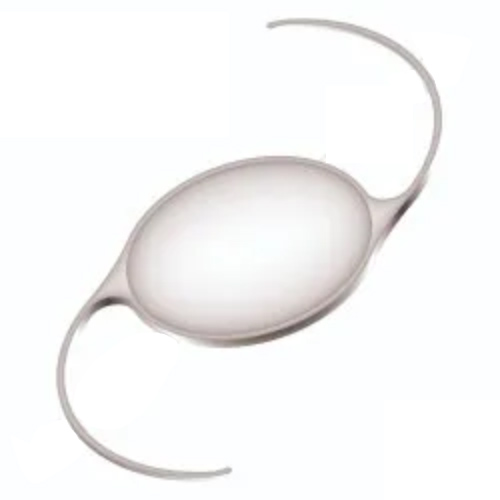

Optiol PMMA Lenses

Manufacturer of a wide range of products which include optiol pmma lenses and optitechnics pmma lens.

These are made up of high quality PMMA lens. It is placed behind the iris in the capsule. Implantation inside the capsular bag (first choice) or fix into the sulcus if the capsular bag is damaged. It is the widely used IOL for cataract surgery.

Product Features

Larger optic diameter.

Step-vaulted haptic design continuous posterior surface contact with the capsular bag to prevent PCO.

Increased stability.

Clear vision.

Optics are YAG Laser Compatible.

Sterilized by Ethylene Oxide.
