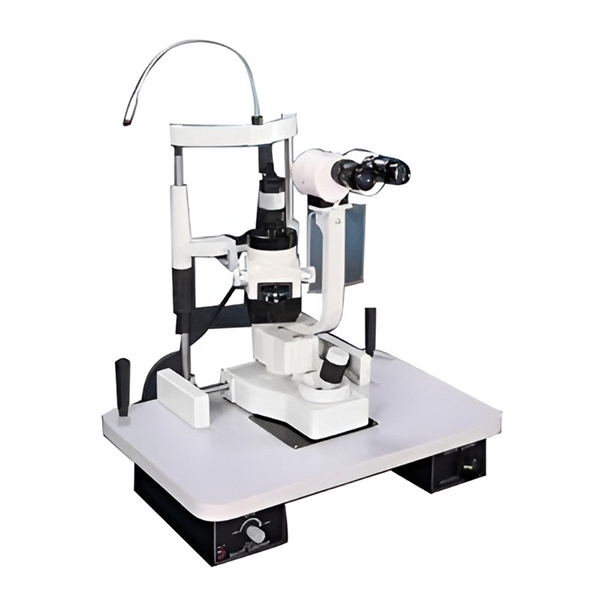

Digital Slip Lamp
Key Features
- Slit image rotation : 0° to 180°.
- Tilting illumination angle up to 20°.
- Filters included: cobalt, green (red‑free), yellow, neutral density, plus open aperture.
- Light source: 12 V 30 W halogen (LED optional).
- Slit image width & height: continuously variable from 0 mm to 14 mm.
- Also supports indirect and retro illumination technique.
Mechanical & Physical Parameters
- Dimensions (L × W × H) : approximately 725 × 460 × 555 mm.
- Net weight: ~20 kg; gross weight: ~27 kg.
- Chin‑rest movement range : about 120 mm.
Optical Components & Accessories
- Equipped with 15× eyepieces.
- Standard accessories include a replacement illumination lamp, mirror, testing rod, fuse, and dust cover.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Maxima |
| Type | Non Portable |
| Automation Grade | Manual |
| Filters | Red |
| Illumination Type | LED |
| Total Magnification | 10x, 16x |
| Eye Piece Magnification | 10x |
| Usage/Application | Hospital, Clinic, Laboratory |
